Heavy Duty 440lbs 8" Stroke 12V Linear Actuator

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    US $30.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Longkang Tech
Model Number:
LK-35W
Usage:
Home Appliance
Certification:
CE, ROHS, UL
Type:
Gear Motor
Torque:
1.5Nm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Drip-proof
Speed(RPM):
12mm/s
Continuous Current(A):
1.5A
Output Power:
30W
Voltage(V):
12/24V
Efficiency:
IE 1
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
For Heavy Duty 440lbs 8" Stroke 12V Linear Actuator for Bed is Standard export carton or pallet.
Port
Ningbo, Shanghai
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(day) 15 To be negotiated

Heavy Duty 440lbs 8" Stroke 12V Linear Actuator

Product Description





Input Voltage: 24VDC

Load Capacity:800N

Max. Speed: 30mm/s

Standard stroke:: 100,150,200,250,300,350,400mm(optional)

Min. install dimension: S+175mm(optional)

Limit Switch: built-in

Duty cycle:10%, Max.2min on/18 min off

Operation Temperature: -26°C---65°C

Protection Class: IP66

Colour: Black or Gray

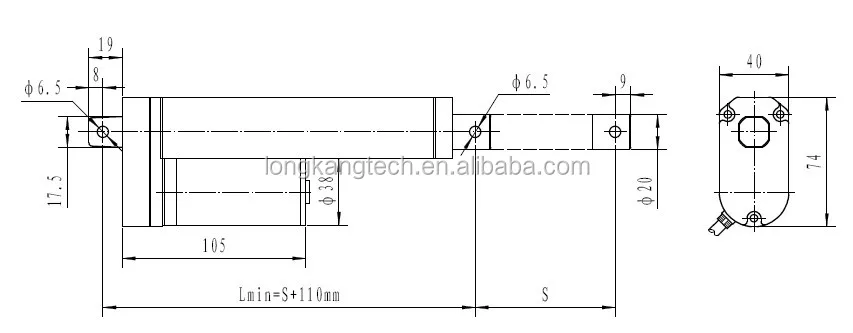

Dimension





dimension
