SM10 Micro Stepper Gear Motor Driver

FOB Reference Price:Get Latest Price
US $5-10.5 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Longkang Tech Micro Stepper Gear Motor Driver
Model Number:
SM10 Micro Stepper Gear Motor Driver
Motor Type:
Stepper Motor
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
For Micro Stepper Gear Motor Driver is standard export carton
Port
Ningbo Shanghai
Lead Time :
For Micro Stepper Gear Motor Driver is 15 days

Micro Stepper Gear Motor Driver

Product Description





 1Rated Voltage: 5VDC

2 current Per phase: 410mA/phase

3 Coil Resistance: 12.2±7%ohm/phase

4 No. Of Phase: 2phase

5 Step angle: 1.8 degree

6 Excitation Method: 2 phase excitation

7Driver mode: Bipolar Drice

8 Pull-in Torque: more than 60gf-cm at 500PPS

9 Holding Torque: More than 75 gf-cm AT 0 pps

10Max Response Frequency: more than 2000pps

11 Max starting Frequency: more than 1000 pps

12 Insulation class: class E for coils

13 Insulation Strength: 100V AV for one second

14 Insulation resistance: 50M Ω DC500V

15 Operating Temperature Range: 0~+55°c



Gearbox Ratio: 1:10    1:20   1:30 and 1: 50

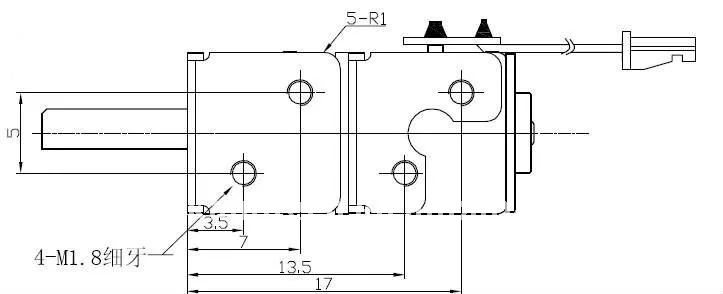

Dimension





SM A side.jpgSM B side.jpg
