3D Printer Stepper Motor

FOB Reference Price:Get Latest Price
US $10-30 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Longkang Tech 3D Printer Stepper Motor
Model Number:
57BYGHM 3D Printer Stepper Motor
Phase:
2, 2
Type:
Hybrid, Hybrid
Certification:
CE
Step Angle(degrees):
1.8 Degree, 1.8°/0.9°
Holding Torque:
0.39N.m-2.8N.m, 2.5kg.cm
Current / Phase:
0.6A, 1A
Max. Sewing Speed:
1
Condition:
New
Overall Dimensions:
nema23
Max. Sewing Thickness:
11
Stitch Length:
1
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
For 3D Printer Stepper Motor is Standard Export Cartion or pallet.
Port
Ningbo, Shanghai
Lead Time :
For 3D Printer Stepper Motor is 20 Days

3D Printer Stepper Motor

Product Description



 1.8°/0.9° SIZE 57mm  2-PHASE HYBRID STEPPING MOTOR (1.8°/0.9°)



Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise:   80°C MAX
Ambient Temperature:-20°C ~ +50°C
Insulation Resistance:100MΩMIN ,500VDC
Dielectric Strength:500V AC 1 minute
Shaft Radial Play:0.06MAX
Shaft Axial Play:0.08MAX



SIZE 57mm Motor Specifications

Series

Model



Step

Angle

(°)

Motor

Length

(mm)

Rated

Current

(A)

Phase

Resistance

(Ω)

Phase

Inductance

(mH)

Holding

Torque

(kg.cm Min)

Rotor

Inertia

 (g.cm²)

Lead

Wire

(No.)

Motor

Weight

(g)

57HM4603

0.9

45

2.4

1.1

2.1

6.5

190

4

520

57HM4661

0.9

45

1.0

6.1

8.3

5

190

6

525

57H500

0.9

51

2.8

0.53

1.75

10

230

4

585

57H562

0.9

51

2

1.9

2.4

7.2

230

6

615

57H563

0.9

51

1

14

14.8

7.2

230

6

595

57H5601

0.9

56

2.8

1.2

3.1

11

280

4

680

57H5602

0.9

56

1.5

1.4

4.25

11

280

4

680

57H5605

0.9

56

1.2

3.5

11

12

280

4

680

57H5610

0.9

56

4.5

0.4

1.1

12

280

4

680

57H5665

0.9

56

2.0

2.0

2.9

9.0

280

6

685

57H601

0.9

64

1.0

7.0

22

14.5

380

4

850

57H700

0.9

76

2.5

0.75

2.75

15

440

4

1050

57H701

0.9

76

3

1.1

2.7

15

440

4

1050

57H704

0.9

76

4.5

0.55

1.44

15

440

4

1020

57H716

0.9

76

2

2.1

6.6

15

440

4

1020

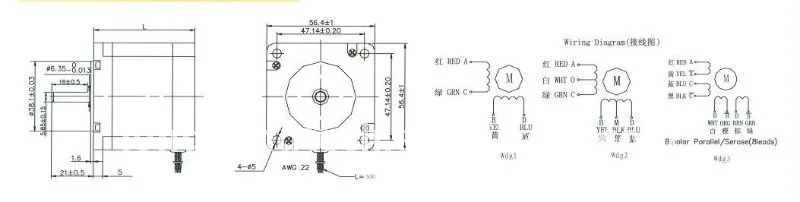

Dimension





57 square 2.JPG
