28PA 28ZYT38 mini planetary gear motor

FOB Reference Price:Get Latest Price
US $5-9.9 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Longkang Tech
Model Number:
28PA 28ZYT38
Usage:
Fan, Home Appliance
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
10kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
5RPM
Continuous Current(A):
2A
Output Power:
10W
Voltage(V):
12
Efficiency:
IE 1
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard export carton
Port
Ningbo, Shanghai
Lead Time :
15 days

Specifications

DC planetary gear motor:
1 planetary gearbox
2 dc brushed motor
3 it can work with encoder.

 dc planetary gear motor technical datas:



Rated Voltage

V

              12

Ratio

1:X

3.7

5.2

13

19

27

51

71

100

139

189

264

369

515

720

Stage

#

1

1

2

2

2

3

3

3

3

4

4

4

4

4

No-load Speed

Rpm

1216

865

328

234

168

88

63

45

32

24

17

12

8.7

6.3

Rated Speed

Rpm

892

635

241

172

123

65

46

33

24

17

13

8.9

6.4

4.6

Rated Torque

Kg.cm

0.18

0.26

0.61

0.86

1.2

2.1

2.9

4.0

5.6

6.8

9.5

13

18

26

“L”

Mm

65

65

72.7

72.7

72.7

80.4

80.4

80.4

80.4

88.1

88.1

88.1

88.1

88.1

Stall Torque

Kg.cm

0.73

1.0

2.4

3.4

4.8

8.2

11

16

22

27

38

52

73

90

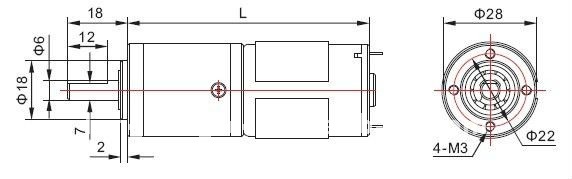

Dimension:
